Copper 3D Printing: Optimized Fin Heat Sink Custom Manufacturing & Full Industry Guide

Copper 3D printing has revolutionized thermal management manufacturing, especially for custom fin-type heat sinks, where improper fin spacing, thickness and height often lead to 30%~40% worse cooling efficiency as traditional processing limits optimal structural design. Many designers fall into the wrong mindset: more fins equal larger heat dissipation area and better cooling result, but practical tests prove excessively dense fins block airflow and sharply raise wind resistance. Thanks to mature copper 3D printing technology, engineers break traditional extrusion and CNC constraints to realize Elenbaas formula-based optimized fin layout for both natural convection and forced cooling. As a leading supplier of customized thermal parts via copper 3D printing, XIAOJIAO provides DfAM optimization, SLM manufacturing and full after-processing for various copper heat sinks with scientifically calculated fin parameters, solving common design flaws for global electronics, AI data center and new energy clients.

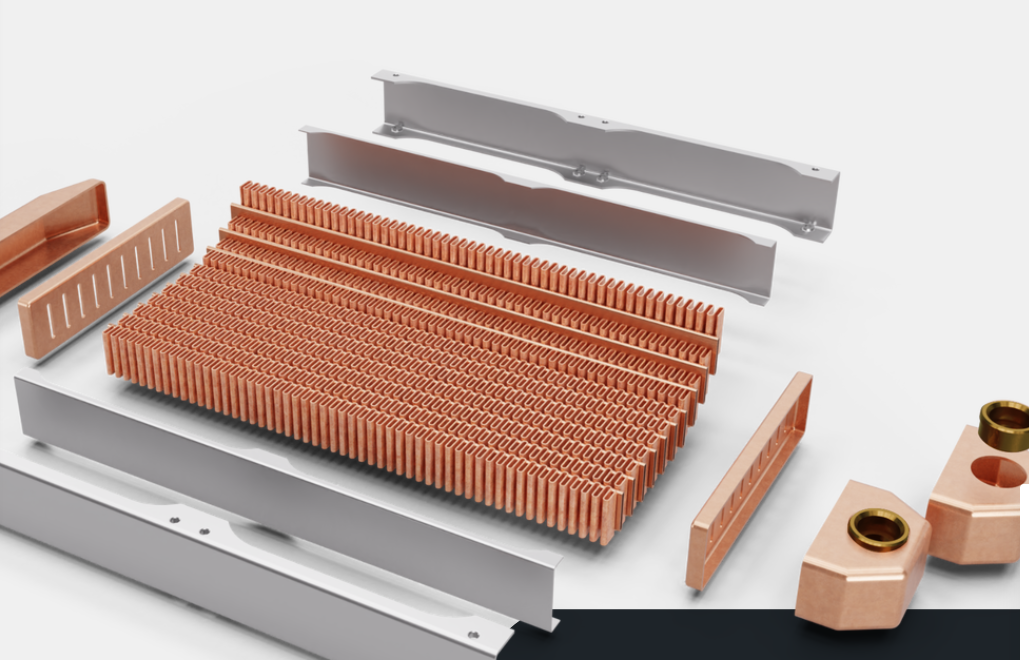

1 What Is Copper 3D Printing & Its Core Advantage on Heat Sink Fabrication

Copper 3D printing is an SLM/EBM-based additive manufacturing technique using high-purity copper powder (C10200/CuCrZr) to produce integrated copper components layer by layer without molds. Compared with conventional CNC cutting and aluminum extrusion, the biggest merit of copper 3D printing on fin heat sink production lies in free geometric customization: designers no longer restricted by machining limits to blindly stack fins, but calculate optimal fin spacing, height and thickness following thermal formulas. Conventional 50mm-width base with 20 fins at only 1.5mm spacing leads to 85℃ operating temperature, while optimized layout via copper 3D printing drops temperature to 68℃ with only 8 fins, a typical case XIAOJIAO solved for an LED cooling client.

2 Key Design Parameters for Copper Printed Fin Heat Sink

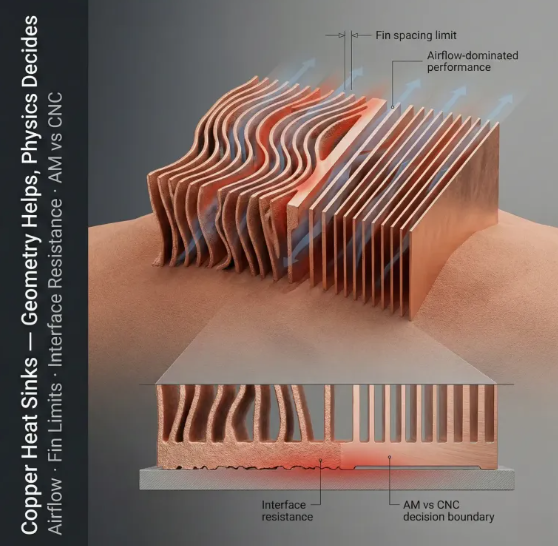

2.1 Optimal Fin Spacing Rule (Core of Heat Sink Design)

For parts manufactured by copper 3D printing, fin spacing is split into natural convection and forced convection standards, following Elenbaas empirical formula \(S_{opt}=C×\sqrt[4]{L/Gr_L}\), simplified as \(S_{opt}≈0.2～0.4×H\) (H=fin height):

1. Natural Convection (no fan): Optimal spacing = 20%~40% of fin height; H=30mm → ideal spacing 6~12mm, XIAOJIAO usually sets 8~10mm for pure copper 3D printed fins;

2. Low wind speed (1~2m/s forced): 3~5mm optimal spacing;

3. Medium wind speed (3~5m/s forced): 2~3mm optimal spacing;

4. High wind speed (>5m/s forced): 1.5~2mm optimal spacing.Too narrow spacing causes air stagnation and useless large surface area, one of the most frequent design defects fixed via XIAOJIAO’s copper 3D printing DfAM service.

2.2 Fin Thickness & Base Thickness Standard for Copper 3D Printing

 Copper features better thermal conductivity than aluminum, so copper fins via copper 3D printing can be thinner: standard fin thickness 1~2mm; too thin causes big temperature difference between tip and root (low fin efficiency), over-thickness reduces available heat exchange area. Meanwhile base thickness ≥1.5~2×fin spacing, a compulsory design norm in XIAOJIAO’s copper 3D printing drawing review. A failed sample with only 3mm base saw 30℃ temp gap between chip and fin root; after base thickened to 6mm via revised copper 3D printing design, overall temp dropped 8℃.

2.3 Fin Height Control Rule

Fin efficiency formula \(η_{fin}=tanh(mH)/(mH)\), when mH＞2, fin efficiency＜50%, upper fin hardly works. Even if height rises from 30mm to 50mm and surface area +67%, cooling temperature only falls 3℃, a common mistake corrected during XIAOJIAO’s copper 3D printing pre-design optimization.

3 Main Copper Materials & Printing Technologies for Copper 3D Printing Heat Sink

3.1 Available Copper Grades Two mainstream raw materials used in XIAOJIAO’s copper 3D printing:

• OFC Pure Copper(C10200): Oxygen ≤30ppm, conductivity 96~98% IACS, thermal conductivity 390~400W/m·K, ideal for high-power cold plate & air-cooled fin heat sink;

• CuCrZr Alloy: High-temperature resistant, tensile ≥380MPa, conductivity 85~90% IACS, applied for mold conformal cooling copper inserts & high-load aerospace cooling parts.

3.2 Core AM Processes of Copper 3D Printing

• Green Laser SLM(515nm): Core process of high-precision pure copper copper 3D printing, absorption rate≈40%, density up to 99.9%, XIAOJIAO’s primary production line for heat sink;

• Red Laser SLM(1064nm): Cost-saving option for CuCrZr alloy cooling components;

• Binder Jetting: Mass low-cost production for standard low-precision copper radiators.

4 Full Service Flow of XIAOJIAO Copper 3D Printing for Heat Sink

Every customized heat sink project via XIAOJIAO’s copper 3D printing follows standardized workflow:

1. Client submit CAD drawing + cooling parameter (power, cooling type: natural/forced convection);

2. Free DfAM optimization: recalculate fin spacing/height/thickness per Elenbaas formula, remove over-dense fin defects;

3. Confirm copper material & printing process, issue detailed quotation;

4. Powder preparation + inert gas sealed SLM printing (chamber O₂＜0.1% anti-oxidation);

5. Post-processing: support removal, vacuum stress relief annealing, CNC finishing/polishing as needed;

6. Full inspection: dimension, conductivity, density + CFD simulation verification of cooling effect;7 Vacuum packaging & global delivery, prototype:3~7days, small batch:7~15days.

5 Real Industrial Cases of XIAOJIAO Copper 3D Printing Optimized Heat Sink

Case1 LED Industrial Heat Sink (Natural Convection)

Client’s original design:50mm base+20 fins@1.5mm spacing, operating temp85℃; XIAOJIAO re-design via copper 3D printing, 8 fins with optimized 8mm spacing(H=30mm), cooling temp down to68℃, production cost cut22%.

Case2 AI Server Microchannel Cold Plate(Forced Liquid Cooling)

XIAOJIAO’s copper 3D printing pure copper cold plate with topology optimized lattice & graded fin spacing; compared with CNC counterpart, heat dissipation +42%, chip operating temp drop26℃, widely adopted by domestic IDC manufacturers.

Case3 EV Inverter Copper Heat Sink(Mid-Speed Forced Air 3m/s)

Optimized fin spacing 2.5mm via copper 3D printing, CuCrZr material, solving high-temperature deformation problem, inverter continuous working temp controlled below72℃.

6 Copper 3D Printing Price Influencing Factors & Cost Optimization Tips

The pricing of customized heat sink via copper 3D printing depends on copper grade, part volume, fin structural complexity, post-processing and batch:

• Pure copper＞CuCrZr in raw cost; green SLM＞red SLM process cost;

• DfAM optimization (XIAOJIAO free service) reduce fin redundant volume to cut raw cost 10~18%;

• Bulk order(≥50pcs) get15~28% unit discount;

• Select standard as-printed surface to skip extra polishing for non-contact fins to save post cost.

7 How to Pick Reliable Copper 3D Printing Heat Sink Supplier

 When selecting a provider for copper 3D printing cooling parts, focus 5 points:1 Own green laser SLM production line for pure copper forming;2 Master fin design formula to complete free thermal optimization;3 Full QC lab(CMM/conductivity tester/X-ray flaw detection);4 Complete post-processing chain(annealing/polishing/CNC);5 Verified mass heat sink cases in AI/NEV/LED field;XIAOJIAO meets all above standards, with AS9100,ISO9001 certification and thousands of optimized copper heat sink projects.

8 Industry Prospect of Copper 3D Printing in Thermal Management

Global demand for optimized copper heat sink via copper 3D printing grows at 47% CAGR driven by AI computing and new energy vehicle boom. Traditional extrusion and CNC cannot realize formula-based variable fin spacing & TPMS lattice structure; copper 3D printing will become mainstream custom cooling solution in next 3~5years, and XIAOJIAO keeps upgrading green laser equipment to lower service cost for global buyers.

FAQ Common Questions about Copper 3D Printing Heat Sink

Q1 Can copper 3D printing make irregular variable fin spacing heat sink?

A Yes, DfAM design + SLM copper 3D printing can make gradual spacing fin per CFD simulation, impossible by extrusion.

Q2 How much temperature drop after fin spacing optimization via copper 3D printing?

A Normally 12~20℃ temperature reduction based on original flawed dense-fin design, per XIAOJIAO mass test data.

Q3 What’s the shortest lead time for custom copper heat sink via copper 3D printing?

A 3~7 working days for prototype after drawing optimization.

Send your heat sink CAD drawings to XIAOJIAO now for free fin spacing optimization & no-obligation quotation of professional copper 3D printing service. Our thermal engineers revise unreasonable dense-fin design to improve cooling efficiency and cut your total manufacturing cost simultaneously.
