Copper 3D printing service

In the field of metal additive manufacturing, copper 3D printing material is becoming an indispensable core material for high-end manufacturing sectors such as electronics, aerospace, energy equipment, and new energy vehicles, thanks to its excellent electrical conductivity, thermal conductivity, and corrosion resistance. However, faced with a wide variety of copper alloy powders on the market, engineers and designers often face selection difficulties: Should they use pure copper, chromium zirconium copper, or tin bronze? This article will provide a deep analysis of the performance differences and selection guide for mainstream copper 3D printing materials.

Pure Copper: The Ideal Choice for Ultimate Electrical and Thermal Conductivity

Pure copper is the "ceiling" of electrical and thermal conductivity in the copper 3D printing material family. Thanks to advanced powder manufacturing processes like gas atomization (e.g., Oxygen-Assisted Gas Atomization - OAGA), the oxygen content of high-purity copper powder for modern 3D printing is strictly controlled at extremely low levels (some top manufacturers can achieve as low as 60ppm - 100ppm).

• Core Performance: The electrical conductivity of as-built pure copper typically remains stable above 98.5% IACS (annealed state can even exceed 100% IACS), with thermal conductivity reaching up to 390-400 W/(m·K), and density easily surpassing 99.8%.

• Advantages: Extremely high purity and low oxygen content ensure that printed parts possess electrical and thermal properties close to theoretical values.

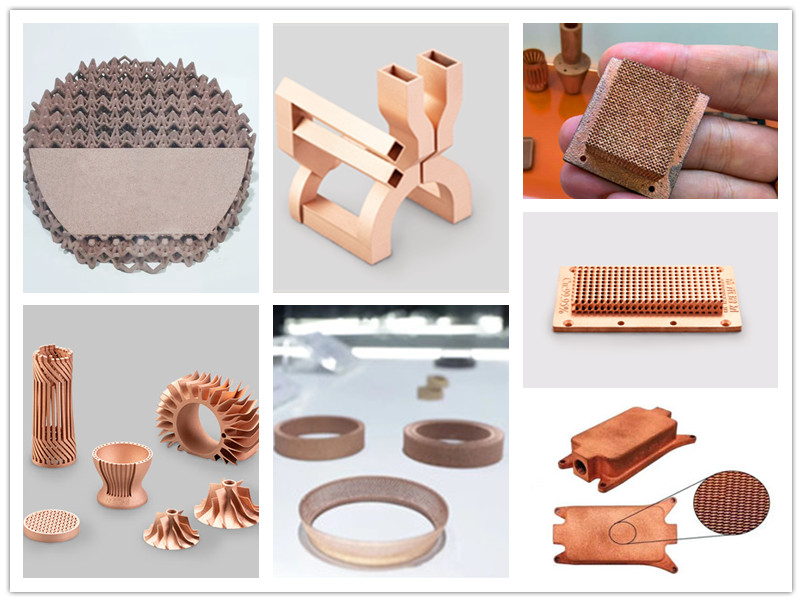

• Typical Applications: Highly suitable for components with stringent requirements for heat dissipation and electrical conduction, such as high-performance heat sinks, liquid cooling plates, new energy vehicle parts, high-frequency induction coils, and terahertz antennas in the 6G communication field.

Chromium Zirconium Copper (CuCrZr): The "King of Comprehensive Performance" Combining High Temperature Resistance, High Strength, and High Conductivity

If you need to maintain the structural integrity of parts under extreme conditions of high temperature and high load, CuCrZr alloy is undoubtedly the first choice. As a typical precipitation-strengthened copper alloy, it significantly improves the material's strength and heat resistance while maintaining good electrical conductivity.

• Core Performance: After heat treatment, the electrical conductivity of CuCrZr can reach around 90% IACS, with a yield strength as high as 410 MPa, and thermal conductivity maintained at an excellent level of 250-320 W/(m·K).

• Advantages: Extremely stable performance in high-temperature environments, perfectly balancing mechanical strength with electrical and thermal conductivity needs, making it a representative of "high strength and high conductivity".

• Typical Applications: Widely used in aerospace rocket engine thrust chambers, combustion chamber liners, high-strength connectors, and various induction coils that need to withstand high temperatures and high pressures.

Tin Bronze (CuSn10): The Expert of Strong, Tough, and Corrosion-Resistant Structural Parts

CuSn10 (tin bronze containing 10% tin) is renowned in copper 3D printing materials for its excellent mechanical strength and corrosion resistance. The addition of tin significantly enhances the material's hardness and elasticity, making it more wear-resistant and durable while maintaining a certain level of electrical conductivity.

• Core Performance: Tensile strength can reach above 520 MPa, with elongation ≥28%, possessing an excellent match of strength and toughness. However, its thermal and electrical conductivity are relatively weaker (thermal conductivity is about 50-60 W/(m·K)).

• Advantages: Excellent corrosion resistance, especially suitable for marine engineering environments; it also has good adaptability for thick-layer printing, enabling high-efficiency and low-cost manufacturing.

• Typical Applications: Jewelry and decorations, marine equipment parts, various wear-resistant structural parts, and decorative applications with high requirements for appearance and durability.

2026 Quick Reference Table for Copper 3D Printing Material Performance

XIAOJIAO: Providing You with the Most Suitable Copper Additive Manufacturing Solutions

Faced with different application scenarios, choosing the right copper 3D printing material is the first step to project success. Relying on profound accumulation in metal additive manufacturing and a comprehensive process development system, XIAOJIAO can provide you with comprehensive copper printing services including high-purity copper, high-strength and high-conductivity CuCrZr, and corrosion-resistant CuSn10.

Whether your product pursues ultimate heat dissipation efficiency or needs to withstand extreme high temperatures and high pressures, XIAOJIAO's team of senior engineers can provide you with professional DFM analysis and material selection advice, ensuring optimal product performance at the best material cost.

Contact XIAOJIAO now to get an exclusive copper 3D printing solution and quote, and let us help your innovative design come to life perfectly!
