Copper 3D printing service

As the demand for high-performance electronics, electric vehicles (EVs), and next-generation data centers skyrockets, traditional manufacturing methods are struggling to keep up with the need for complex, highly conductive components. Direct copper printing—an advanced additive manufacturing technology—is emerging as the game-changer. By enabling the precise, layer-by-layer fabrication of pure copper and high-strength copper alloys, this technology is breaking through the limitations of conventional processes and unlocking new possibilities in thermal management and electronic packaging.

⚡ Why Direct Copper Printing?

Direct copper printing solves critical challenges inherent in traditional copper manufacturing:

1. Design Freedom: Traditional methods (e.g., machining, casting) struggle with complex geometries, limiting innovation. Direct printing enables intricate internal structures (e.g., microchannels, conformal cooling pathways) that optimize thermal efficiency in compact spaces—crucial for AI chips, EV batteries, and aerospace components.

2. Performance Enhancement: Eliminating common joints and voids in welding brazing or brazing can improve mechanical strength, conductivity, and thermal conductivity. The density of printed components is ≥ 99.5%, and the conductivity is ≈ 101% IACS, surpassing traditional similar products.

3. Cost & Time Efficiency: No molds or tooling are required, reducing lead times from months to weeks. Complex parts that once needed multi-step assembly can be printed as single, integrated units, saving costs and minimizing material waste.

4. Sustainability: Additive manufacturing reduces material scrap and energy consumption compared to subtractive processes, aligning with green manufacturing goals.

🤔 Challenges of Direct Copper Printing

Despite its advantages, direct copper printing poses significant technical hurdles:

1. High Reflectivity & Thermal Conductivity: Copper reflects over 95% of infrared laser energy, acting like a "mirror." This reduces absorption, causing incomplete melting, spatter, and porosity. Its high thermal conductivity rapidly dissipates heat, making it hard to maintain a stable melt pool.

2. Material Purity Sensitivity: Even minor oxygen impurities (e.g., >0.05%) can drastically degrade electrical conductivity. Printing requires ultra-pure copper powder (≥99.9%) and inert gas environments.

3. Thermal Stress & Distortion: Copper's rapid cooling rates during printing induce high residual stresses, causing warping or cracking in large parts. Optimizing layer thickness, scanning strategies, and support structures is critical.

4. Post-Processing Complexity: Achieving smooth surfaces and uniform properties often requires secondary operations like heat treatment or electropolishing.

🔄 Process Integration: Unlocking the Full Potential

Overcoming these challenges requires holistic process integration:

1. Multi-Technology Synergy: Combining laser-based methods (e.g., green laser SLM, electron beam melting) with post-processing (e.g., HIPing—hot isostatic pressing) enhances density and mechanical properties. Hybrid systems integrating printing with milling can achieve superior surface finishes.

2. Digital Twin & AI Optimization: Simulation software predicts thermal gradients, distortion, and residual stress during printing. AI algorithms optimize laser power, scanning paths, and hatch spacing in real-time, ensuring process stability.

3. Materials-Structure-Process Co-Design: Topology optimization tools design parts with lightweight lattice structures or conformal cooling channels, while process parameters are tailored to match the geometry. This integration maximizes performance while minimizing material usage.

4. Closed-Loop Control: Advanced systems monitor melt pool temperature, spatter, and layer bonding in real-time, automatically adjusting parameters to prevent defects.

📌 High-Purity Copper Powder: The Foundation of Quality

High-quality copper powder is the cornerstone of successful direct printing:

● Purity: Typically >99.95% purity with ultra-low oxygen content (<0.01%) to ensure electrical conductivity ≥100% IACS.

● Particle Morphology: Spherical or near-spherical powders (5-53 μm) minimize flow resistance during spreading and enhance packing density, reducing porosity.

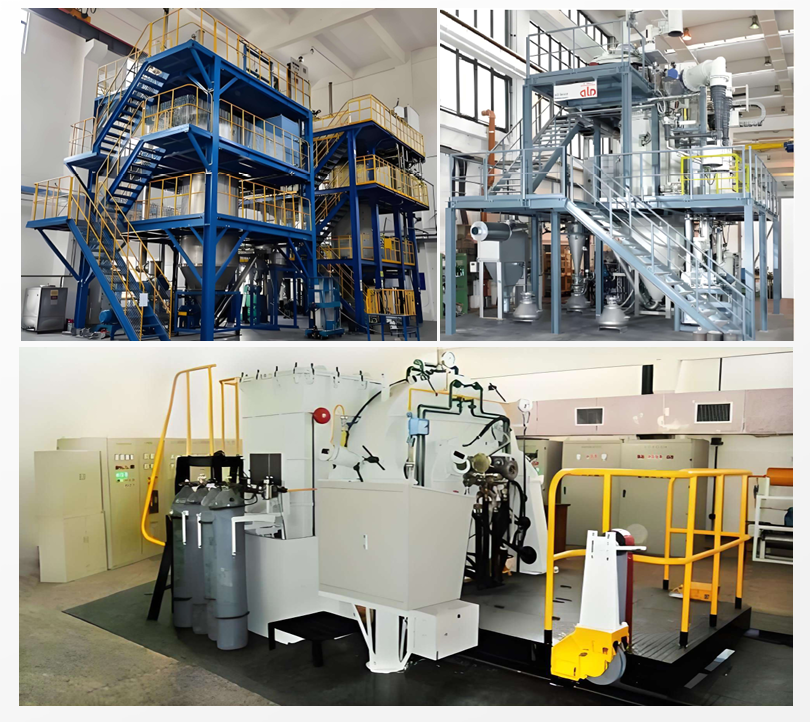

● Production Methods: Gas atomization or plasma rotating electrode processes (PREP) are preferred for consistent particle size distribution and smooth surfaces.

● Applications by Particle Size:

○ Nano/micron powders (≤10 μm): Ultra-high resolution features for electronics (e.g., micro heat sinks).

○ Medium powders (20-50 μm): General-purpose structural parts.

○ Coarse powders (≥50 μm): Large-scale components with excellent build efficiency.

● Key Suppliers: Companies like Zhongyuan New Materials and Chengdu Hebasqi specialize in oxygen-controlled, high-performance copper powders, driving advancements in 3D printing.

📈 Latest Technological Advancements

The field is advancing rapidly:

1. Multi-Laser & Large-Format Systems: Companies like YiJia 3D and Xihe Additive have achieved record-breaking prints of meter-scale copper components (e.g., φ735×1010mm nozzles) with ±0.01mm accuracy and 99.97% density using multi-laser synchronization and intelligent wind field control.

2. Green Laser & Hybrid Sources: Xihe's green laser (532 nm) absorbs 8-10× more energy than infrared lasers, enabling reliable printing with lower power and reduced defects. GE's electron beam point melting technology further expands material compatibility.

3. AI-Driven Parameter Optimization: Systems from Xiaojiao 3D use machine learning to adapt printing conditions based on real-time sensor data, improving consistency across batches.

4. New Alloy Developments: CuCrZr and Cu-Al₂O₃ composites offer enhanced strength and creep resistance for aerospace applications, with tailored printing parameters.

5. Direct Ink Writing (DIW) for Electronics: ECAM and DIW enable flexible copper deposition on non-planar surfaces, revolutionizing flexible electronics and sensors.

🤝 Why Partner with Xiaojiao 3D Printing for Direct Copper Solutions?

As a leader in metal additive manufacturing, Xiaojiao 3D Printing is at the forefront of direct copper printing technology, offering end-to-end solutions from material design to mass production:

● Advanced Process Control: Our proprietary green laser SLM systems and electron beam technologies overcome copper's reflectivity challenges, ensuring parts with industry-leading conductivity and density.

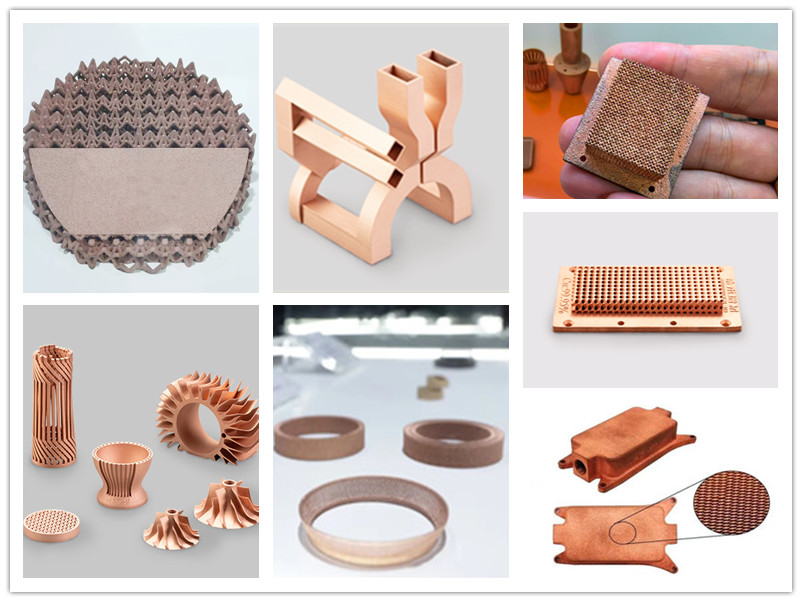

● Application-Driven Innovation: We collaborate with customers to co-engineer parts optimized for thermal management (e.g., 3D-printed VC chambers), EV components (liquid-cooled battery trays), and aerospace heat exchangers.

● Materials Expertise: In-house powder characterization and post-processing capabilities guarantee consistent material properties across batches.

● Scalable Manufacturing: From rapid prototyping to high-volume production, our multi-laser systems and automated workflows meet diverse demands efficiently.

Embrace the future of high-performance manufacturing with Xiaojiao 3D Printing's direct copper solutions. Contact us today to revolutionize your designs!
