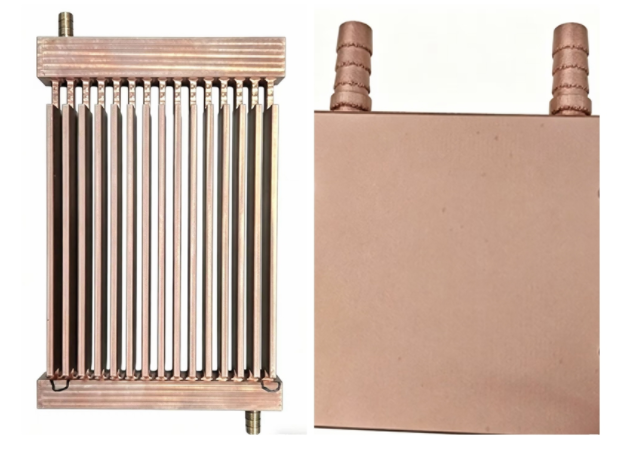

As AI chips and high-performance electronics push the boundaries of power density, traditional cooling methods are reaching their limits. The 3D printed copper cold plate has emerged as a revolutionary solution, overcoming the manufacturing constraints of the past to deliver unparalleled thermal performance. This article explores how this advanced technology is reshaping thermal management in data centers, electric vehicles, and beyond.

Why Choose Copper 3D Printing? Core Advantages

Copper boasts a thermal conductivity of approximately 400 W/mK, making it far superior to aluminum or stainless steel for heat dissipation. However, traditional manufacturing methods like CNC machining and welding struggle with copper due to its high reflectivity and hardness.

The core advantages of copper 3D printing lie in its ability to overcome these traditional barriers:

• Unmatched Design Freedom: Unlike traditional methods limited to straight drilled holes, additive manufacturing allows for complex internal channels (down to 0.2mm), lattice structures, and topology-optimized fins. This maximizes the heat exchange surface area and optimizes fluid dynamics.


• Monolithic, Leak-Proof Integration: Traditional cold plates require welding or gaskets, which are potential leak points. 3D printing creates a one-piece structure with no joints, fundamentally eliminating the risk of coolant leakage.


• High-Purity Material Utilization: Advanced technologies like Green Laser SLM and ECAM solve the high-reflectivity issue of copper, enabling the use of high-purity copper (99.95%+). This ensures maximum thermal transfer efficiency directly at the chip interface.

Performance Breakdown: How Does a 3D Printed Copper Cold Plate Perform?

The performance of a 3D printed copper cold plate is a significant leap forward compared to conventional cooling solutions. Here is how it performs in real-world applications:

• Extreme Heat Dissipation: It can handle extreme heat fluxes (over 1000W/cm²), reducing CPU/GPU temperatures by 10-50°C and effectively preventing thermal throttling in high-performance computing.


• Superior Thermal & Hydraulic Efficiency: Intricate microchannels and AI-driven topology optimization can reduce thermal resistance by up to 32-55% and lower pump power consumption by up to 60%.


• High Density & Reliability: Thanks to advanced printing processes, these cold plates achieve >99.9% density, matching the thermal conductivity of forged copper. The monolithic structure ensures they can withstand high-pressure testing with zero leaks.

Key Applications: From AI Data Centers to EVs

1. AI Data Centers & High-Performance Computing (HPC)
With AI processor power consumption soaring, direct-to-chip (D2C) liquid cooling is becoming mandatory. 3D printed copper cold plates provide the necessary thermal headroom to keep next-gen AI clusters running at peak performance.

2. Electric Vehicles (EVs)
Efficient battery thermal management is crucial for range and safety. 3D printed cold plates offer lightweight, complex cooling channels that ensure uniform temperature distribution across battery packs, extending their lifespan.

3. Power Electronics & RF Systems
For radar systems and power inverters, the ability to print conformal cooling channels directly into the cold plate base maximizes reliability and lifespan under extreme operating conditions.

Customer Success Stories: Real-World Impact of 3D Printed Copper Cold Plates

To truly understand the value of this technology, let's look at how leading companies are leveraging 3D printed copper cold plates to solve critical thermal challenges.

Case : Revolutionizing Data Center Efficiency with CoolestDC

The Challenge:
A major data center provider faced a critical bottleneck: traditional air cooling was pushing GPUs to their thermal limits (90°C), causing severe thermal throttling and capping performance.

The Solution:
Partnering with XIAOJIAO Additive Minds, CoolestDC developed a leak-proof, monolithic 3D printed copper cold plate using EOS Copper CuCP material. The design featured complex internal channels and patented oblique fins, manufactured without any welds or joints.

The Results:
The performance gains were staggering:

• Temperature Drop: GPU temperatures plummeted from 90°C (air-cooled) to just 40°C under full load.

• Performance Boost: The GPU could run at its peak clock frequency without throttling, increasing computational power from 5.8 TFlops to 8.1 TFlops (a 40% boost).

• Energy Savings: The facility's Power Usage Effectiveness (PUE) dropped to around 1.2, significantly reducing overall energy consumption.

Manufacturing Technologies: SLM vs. ECAM

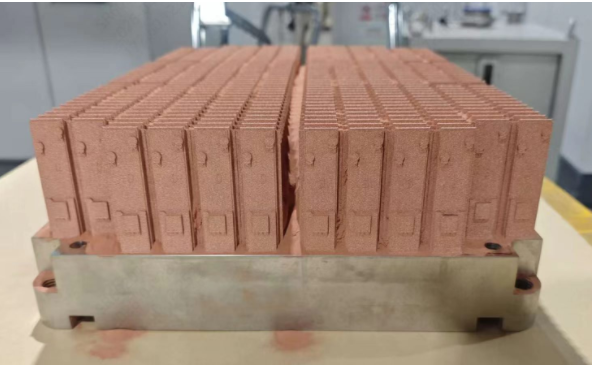

• Green Laser SLM: Traditional infrared lasers reflect off copper, but green lasers are absorbed much more efficiently (40% vs 5%). This allows for the precise melting of pure copper powder to create dense, high-conductivity cold plates.



• Electrochemical Additive Manufacturing (ECAM): This room-temperature process deposits copper ions layer by layer. It is ideal for creating extremely fine features (voxel resolution ~33 microns) and complex internal geometries without thermal stress.

Why Partner with Xiaojiao 3D Printing for Your Cold Plates?

Producing a high-quality 3D printed copper cold plate requires specialized equipment and expertise.

1. High-Purity Material Expertise: We utilize advanced green laser and ECAM-compatible processes to ensure your cold plates achieve >99.9% density and maximum thermal conductivity.


2. Complex Geometry Capability: From micro-channel lattices to topology-optimized fins, we bring the most challenging thermal designs to life.


3. Rigorous Quality Control: Every cold plate undergoes pressure testing and CT scanning to guarantee a leak-free, high-performance product ready for integration.



Ready to upgrade your thermal management system?

Don't let heat limit your innovation. Contact Xiaojiao Copper 3D Printing today to discuss your custom copper cold plate design and get a competitive quote.
