Copper alloys occupy a crucial position in the field of 3D printing (additive manufacturing) due to their exceptional thermal and electrical conductivity. However, their high reflectivity and thermal conductivity pose unique challenges to 3D printing processes. This article will delve into the complete process chain of copper 3D printing, from technical principles and critical parameters to application scenarios, uncovering the underlying technology logic and future potential.

I. Core Technical Principles of Copper 3D Printing： The mainstream copper alloy 3D printing technologies are Selective Laser Melting (SLM) and Electron Beam Melting (EBM):

1. Selective Laser Melting (SLM):

● Process: High-power lasers (green/blue light) are used to melt copper alloy powder layer by layer, which are then stacked to form the part.

● Key Challenge: Copper reflects over 95% of traditional infrared lasers, requiring shorter-wavelength green (515 nm) or blue (450 nm) lasers to significantly improve energy absorption.

● Process Parameter Optimization: Precise control of laser power, scanning speed, layer thickness (typically ≤30μm), and protective atmosphere (inert gas to prevent oxidation) is required.

2. Electron Beam Melting (EBM):

● Process Features: Melting copper powder with high-temperature electron beams in a vacuum environment, suitable for large components.

● Advantages & Limitations: High heat input reduces residual stress, but results in higher surface roughness, requiring post-processing.

II. Process Challenges and Breakthroughs in Copper 3D Printing

1. High Reflectivity and Energy Absorption:

●Solutions: Employ dedicated lasers (e.g., Nd:YAG green lasers) or optimize scanning strategies (e.g., multi-laser scanning, rotating scan paths) to enhance melt pool stability.

2. Thermal Cracking Sensitivity and Grain Control:

● Countermeasures: Add alloying elements (e.g., Cr, Zr) to refine grains and suppress thermal cracks; Optimize thermal management: Preheat the substrate and control scanning strategies to reduce temperature gradients.

3.Density and Surface Quality:

● Through precise control of process parameters (e.g., low scanning speed, high power density), densities of ≥99.5% can be achieved, and surface roughness can be optimized to Ra ≤ 10 μm.

III. Complete Process Chain of Copper 3D Printing：

1. Pre-processing:

● Material Preparation: Choose high-purity copper alloy powders (e.g., CuCrZr, CuAl).

● Modeling and Slicing: Use specialized software to generate layer paths and set support structures.

2. Printing Process:

● Environmental Control: Fill with inert gases (e.g., argon) to prevent oxidation.

● Laser/Electron Beam Scanning: Melt powder layer by layer according to predetermined paths.

3. Post-processing:

● Heat Treatment: Eliminate residual stress and optimize mechanical properties (e.g., solution and aging treatment).

● Surface Treatment: Sandblasting, polishing, or electrochemical treatment to improve surface finish.

● Quality Inspection: CT scanning, metallographic analysis, and mechanical property testing to ensure part qualification.

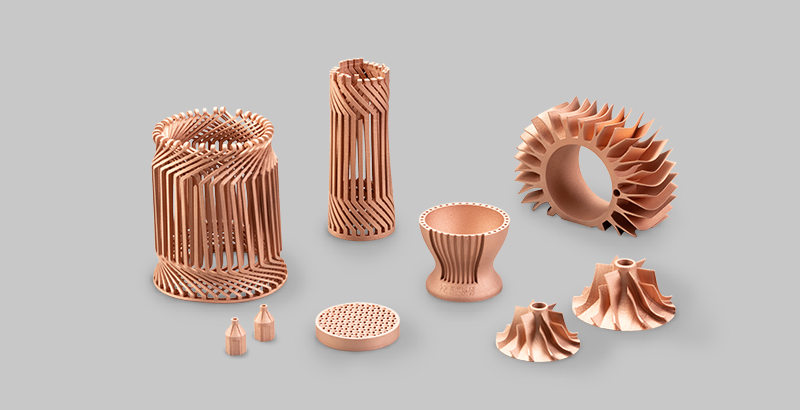

IV. Application Scenarios of Copper 3D Printing

1. High Heat Flux Scenarios:

● Rocket Engine Combustion Chambers (e.g., NASA's GRCop-42 alloy): Withstand extreme thermal loads.

● Electronics Cooling: AI server cold plates, high-power semiconductor modules—3x higher thermal efficiency than aluminum.

2. Electromagnetic Functional Components:

● High-Frequency Coils and Antennas: Topology optimization enables lightweighting and performance enhancement.

● Induction Heating Devices: Complex induction coils surpass traditional manufacturing limitations.

3.Other Frontier Applications:

● Medical Implants (e.g., high-thermal-conductivity copper alloy orthopedic components for bone integration).

● New Energy Vehicles: Key components in battery thermal management systems.

V. Advantages and Future Trends of Copper 3D Printing优势：Advantages:

● High Design Freedom: Achieve complex internal flow channels and topology-optimized structures.

● Superior Material Properties: Thermal/electrical conductivity far exceeds other metal 3D printing materials.

● On-Demand Manufacturing: Reduce material waste and shorten supply chains.

Future Directions:

● Cost Reduction: Mature green/blue laser technologies drive large-scale adoption.

● Multi-Material Hybrid Printing: Copper composites with ceramics/polymers for extended functional integration.

● AI-Driven Process Optimization: Real-time monitoring and adaptive parameter adjustment via machine learning.
