Sintered Copper 3D Printing: Unlocks High-Density Pure Copper Forming
In the realm of high-end additive manufacturing, sintered copper 3D printing is the key to breaking traditional limitations and producing complex, high-thermal-conductivity components. Unlike standard metal printing, pure copper has always been a "nightmare" for laser processing due to its extremely high reflectivity and thermal conductivity. This article delves into the principles of laser sintering for copper and how XIAOJIAO conquers this industry challenge through spectral intelligence and precision sintering processes, achieving near-full-density, high-performance copper parts.

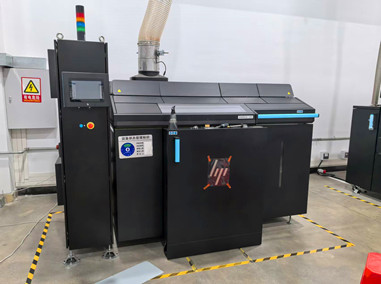

Sintered copper 3D printing (typically referring to Laser Powder Bed Fusion LPBF or Selective Laser Sintering SLS) is an additive manufacturing process that fuses copper powder layer by layer using a high-energy laser beam. The core workflow is as follows:
Laser Selective Scanning: The printer spreads a thin layer of copper powder in an inert gas-protected chamber. A high-power laser beam precisely scans and heats the powder based on 3D model slice data.
Melt Pool Formation & Solidification: The laser energy rapidly brings the copper powder particles to their melting point, forming microscopic melt pools. As the laser moves away, the melt pool cools and solidifies rapidly, densely bonding the powder particles.
Layer-by-Layer Forming: The build platform lowers, the recoater spreads a new powder layer, and the laser continues scanning the next layer, repeating the cycle until the part is fully formed.
Traditional laser sintering of pure copper faces two major physical hurdles:
Extremely High Laser Reflectivity: Pure copper reflects over 95% of traditional infrared lasers (1070nm wavelength). This not only makes it difficult to absorb laser energy, but the unabsorbed reflected light can even damage the laser's optical components.
Extremely High Thermal Conductivity: Copper dissipates heat incredibly fast. The heat input from the laser spreads instantly, causing highly unstable melt pools that easily lead to defects like porosity and lack of fusion, severely compromising part density and conductivity.





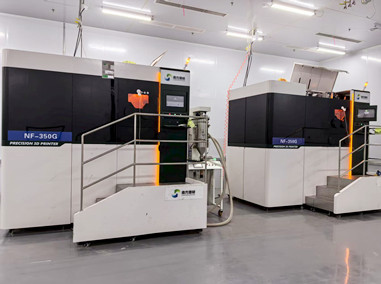

XIAOJIAO has completely solved the high reflectivity issue of pure copper to infrared light through its self-developed Green/Blue Laser Sintering System. Short-wavelength lasers (515nm or 450nm) are efficiently absorbed by copper powder (absorption rate increased to over 60%), forming stable and deep melt pools.
Combined with XIAOJIAO's Precision Thermal Management Sintering Process, we achieve:
Near-Full Density Forming: Part relative density consistently exceeds 99.5%, with no visible internal porosity.
Exceptional Electrical/Thermal Performance: Electrical conductivity reaches 90%-98% IACS, with thermal conductivity rivaling wrought pure copper.
Superior Mechanical Strength: Overcomes the low strength and thermal softening issues of traditionally sintered copper, making it suitable for harsh industrial environments.
Integrated Complex Structures: Capable of manufacturing complex copper parts with conformal cooling channels, lattice structures, and ultrathin walls (down to 0.3mm), which are impossible with CNC machining and casting.
Extremely High Material Utilization: The additive nature allows unmelted copper powder to be recycled, achieving over 95% material utilization and drastically reducing waste of expensive copper.
Rapid Delivery & Customization: No molds required; goes directly from digital model to physical part, shortening R&D cycles from months to days.
In the Laser Sintering Copper process, surface quality directly determines the part's fluid dynamics performance and assembly precision. Through precise process control, XIAOJIAO achieves exceptional roughness performance at different stages:
As-Built Surface:
Influenced by powder particle size and the physics of the laser melt pool, the raw surface of laser sintered copper typically has a fine grainy texture. The general as-built surface roughness (Ra) ranges from 5μm to 20μm. For most non-mating structures or internal cooling channels, this precision meets basic requirements.
Contour Scanning Optimization:
XIAOJIAO employs advanced contour scanning strategies and ultra-fine powder (particle size distribution 15-45μm) to effectively suppress the balling effect of the melt pool. By optimizing laser power and scanning speed, we stably control the as-built roughness of key planes to Ra 3μm to 5μm, significantly outperforming the industry average.
Post-Processing Finishing:
For high-precision sealing surfaces or optical contact surfaces, we offer post-processing services such as CNC finishing, grinding, and chemical polishing. After precision machining, the key dimensional tolerances of copper parts can be controlled within ±0.01mm, and the surface roughness can reach a mirror-like Ra 0.4μm to 0.8μm
AI Chip & Data Center Cooling: Fabricating high-performance copper cold plates with complex micro-channels to rapidly dissipate immense heat from high-compute chips at the source.
New Energy Vehicles & Aerospace: Integrally formed lightweight motor windings and rocket engine combustion chamber liners that reduce weight while boosting electrical and thermal efficiency.
High-End RF Devices: Low-loss RF antennas and waveguide devices with smooth internal flow channels, meeting the stringent requirements of 5G/6G communications.
